Used to identify if an element captured by the A360 recorder is valid or not.

#### V 0.5 UPDATES!!####

Use the power of GenAI to create custom Xpath for your recorder elements!

Just select OuterHTML as a property and provide an OpenAI API to start creating custom Xpath to use rather than the absolute XPATH provided in DOMXPath.

############################################### #

问题陈述

The most common point of failure for any RPA process is the brittleness of the UiElements captured while using recorder. Every time a Bot fails to click, set text etc. the developer needs to check out the code, run the recorder capture again to know if the element properties have changed or not. This is a time-consuming activity and forms a major part of the maintenance activity conducted for every Bot. Another common issue is that the web elements do not match in Developer and Production environment, causing Bot failure at the time of deployment.
使用步骤

1.1 Select the recorder element you want to validate. Ensure that the Object Properties are not expanded.

1.2 Once the element is selected click on Read. It will pop up the enabled properties for the element. If the Read button is clicked without selecting the element or on a not Bot page, it will throw an error.

1.3 Go to the Target page and click on Validate.

1.3.1 It will notify if the Page Title is incorrect.

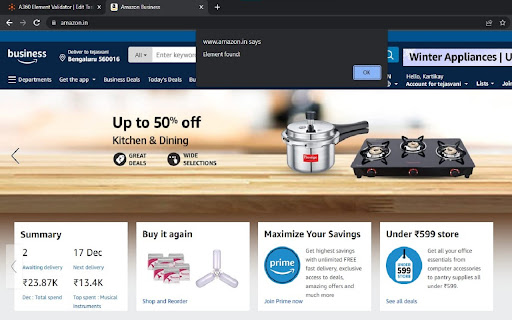

1.3.2 If Element is found. Element Found popup will come and the element will be highlighted. In a few cases if the element is hidden behind another element, it will mention that the element is found but will not highlight. For such elements, left click may not work and best practice is to use click.

1.3.3 If element is not found, it will throw the error and mention which primary locator failed.
优势

• Developer does not need to rerun the bot to know if the element that was captured is still identifiable or not. This will save them a lot of time.
• Developer can capture the element and try different properties to know which one would be the right one to use.
• No need to check out the code. Can be used directly in public repository.
• Extension can also validate the Page title and notify if the Page title has changed.
• Currently handles only the most used recorder properties:
o HTML ID
o HTML Tag
o InnerText
o DomxPath
o Path
o Class
o Frames
o Combobox
限制

• Currently only works for Chrome 元素。
• Only works with Recapture Object (Auto Detect).
